Project aims to realize prepreg substrate materials for automotive applications

What is the difference between fireproof cloth and flame retardant cloth?

DIC announced that its project in partnership with the Fukui Seiren and Fujinsi County Industrial Technology Centre had been selected by the new Energy and Industrial Technology Development Organization (NEDO) as the main research project for the Strategic Innovation Plan for fiscal year 2018. Energy-saving technologies (commercial development phase).The project focuses on the commercialization of fast curing prepreg for the manufacture of carbon fiber composites for automotive applications.

The NEDO program seeks to advance the development of technologies that will contribute to create an energy-efficient economy and society and/or improve the competitiveness of Japanese industry. The program selects and subsidizes technological development project with the potential to significantly reduce energy consumption. (Projects selected in fiscal year 2018 will be subsidized from fiscal year 2018 through fiscal year 2020.)

The project brings individual technologies by three specialists together; DIC’s radical-curing resin (cures in less than one minute at 150°C) that leverages its original polymer design technologies; the Industrial Technology Center of Fukui Prefecture’s tow spreading (processes fiber bundles into flat sheets) and high-speed prepreg processing technologies; and Seiren’s high-quality prepreg processing and quality management technologies. The goal is to develop fast-curing prepreg suitable for mass production that achieves both low production costs and high quality within the world’s shortest production time. The prepreg can also be stored at room temperature.

The project also includes the development of a high-speed manufacturing mass production process for commercialization and mass production of the new prepreg, which reduces the energy consumption required for production and molding and improves vehicle fuel economy by reducing vehicle weight. As a result, the project is expected to yield a 90,000 kl (crude oil equivalent) reduction in energy consumption in 2030.

In recent years, automakers have focused on reducing vehicle weight with the aim of boosting fuel economy. While this trend has driven a steady increase in the use of carbon fiber composite materials in vehicle challenges remain such as the final cost arising from expensive materials and slow molding speeds. DIC, the Industrial Technology Center of Fukui Prefecture and Seiren continue working together to achieve mass production of their new prepreg with the aim of overcoming this challenge and encouraging adoption by automakers. In doing so, the three organizations look forward to realizing a product that helps in further advance the popularity of carbon composite materials.

What is the difference between fireproof cloth and flame retardant cloth?

What is the difference between fireproof cloth and flame retardant cloth?

Classification

1. Generally speaking, the fireproof cloth is a flame-retardant cloth, that is to say, a fabric that is flame-retardant and burns, and a flame-retardant cloth with high flame retardancy can be called a fireproof cloth, such as a glass fiber fireproof cloth and a basalt fiber fireproof cloth.

2, silicone rubber coating

Silicone-coated glass fiber cloth is a high-performance, multi-purpose composite new product that is made of glass fiber cloth with high temperature resistance, corrosion resistance and high strength, which is calendered or impregnated with silicone rubber.

Performance

1, low temperature can be -70 ° C ,high temperature can be 230 ° C

2, It is resistant to ozone, oxygen, light and weather aging, excellent weatherability in the field, life expectancy of up to 10 years.

3, with high insulation performance, dielectric constant 3-3.2, breakdown voltage 20-50KV / MM

The main purpose

1. Electrical insulation: Silicone cloth has a high electrical insulation grade,it can withstand high voltage load, and it can be made into insulating cloth, casing and other products.

2. Non-metallic compensator: Silicone cloth can be used as a flexible connecting device for pipes. It can solve the damage of pipes caused by thermal expansion and contraction. Silicone cloth has high temperature resistance, anti-corrosion, anti-aging performance, good elasticity and flexibility. It can be widely used in petroleum, chemical, cement, energy and other fields.

3, anti-corrosion: silicone rubber coated glass fiber cloth, it can be used as a pipeline, saving the internal and external anti-corrosion layer, excellent anti-corrosion performance, high strength,it is an ideal anti-corrosion material.

4, other areas: silicone rubber coated glass fiber membrane structural materials can be applied to building sealing materials, high temperature anti-corrosion conveyor belts, packaging materials and other fields.

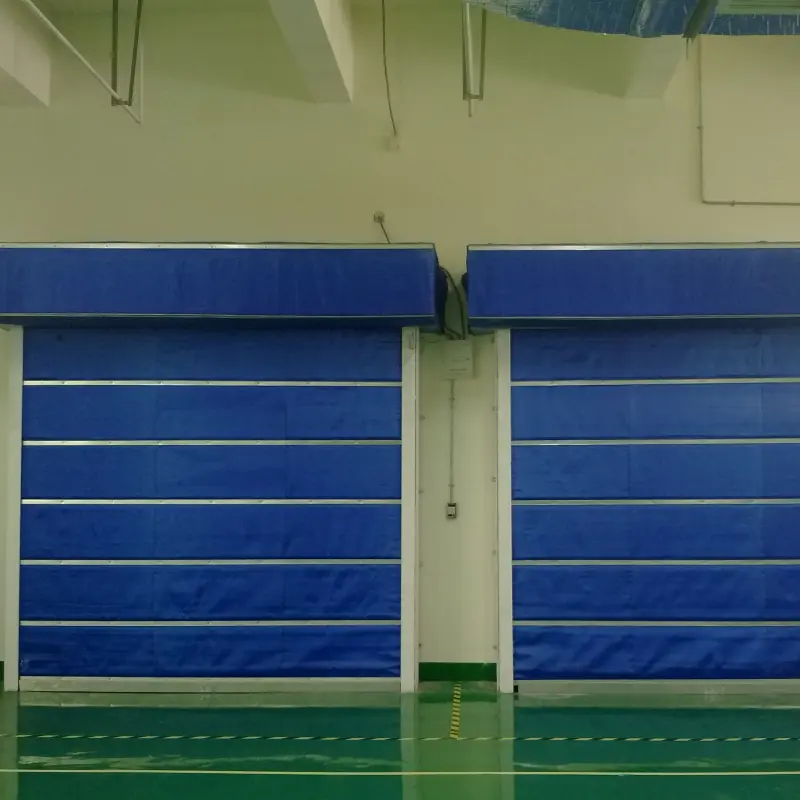

5,it can be used as a fire curtain.

Basalt

The basalt fiber fireproof cloth is woven from GBF’s 7~9μm continuous basalt fiber spun yarn, including plain cloth and satin cloth, which are treated with high temperature and non-toxic coating. It is used as the best fireproof material for fire protection protective clothing lining, flame retardant, heat insulation fabric and fire curtain. Because of its non-combustibility, high temperature resistance, no toxic gas discharge, good heat insulation, no melting or dripping, high strength, no heat shrinkage and so on.

Product application: Suitable for shipbuilding, large-scale steel structure and electric power maintenance, on-site electric welding, gas cutting protective equipment, textile, chemical, metallurgy, theater, military and other ventilation and fire protection and protective supplies. Fire helmet and neck fabric. The basalt fiber fireproof cloth is incombustible material, and it does not deform, burst, and fire for more than 1 hour under the action of 1000 °C flame. It can protect against humidity, steam, smoke and chemical gases. It is also suitable for fire-fighting fire-fighting suits, fire curtains, fire blankets, fireproof bags, electric welding, fireproof cloth fences, etc.

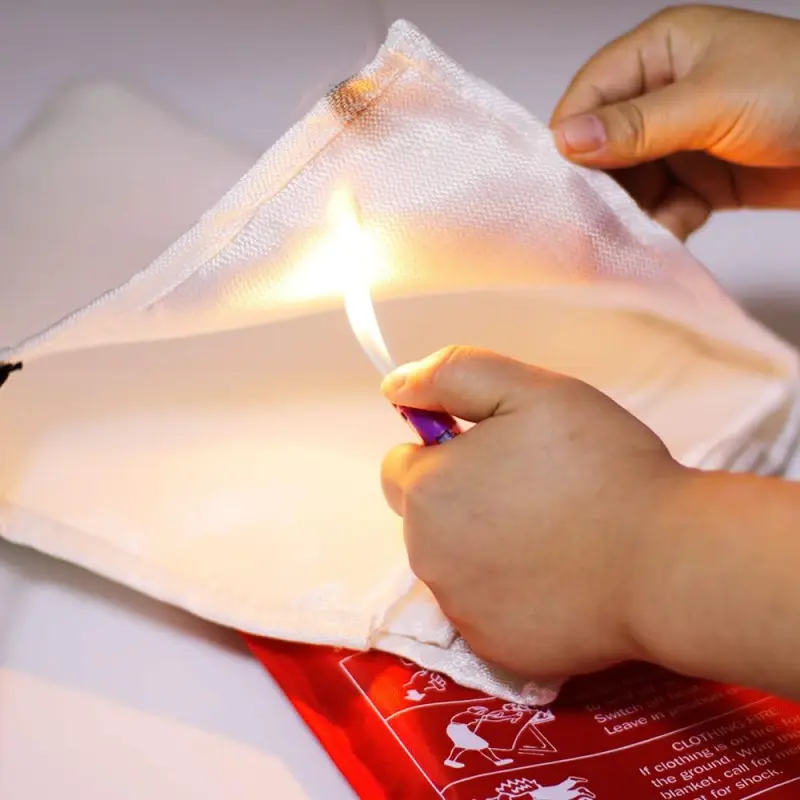

The Specification of Silicone Fire blankets

Fiberglass blanket is made of specially treated fiberglass fabric which is smooth, soft and tight, and does not irritate the skin, the normal thickness is 0.5mm. This blanket is non-toxic, non-polluting and reusable. In the initial stages of fire, oxygen can be isolated by the fire blanket and the spread of the fire can be controlled within the shortest time, meanwhile, wrapping the fire blanket to protect the body when escape.

Normal dimension:
1.0mx1.0m
1.2mx1.2m
1.5mx1.2m
1.5mx1.5m
1.8mx1.2m
2.0mx2.0m
We provide Customized Service of the dimension.

Shenzhen Core-Tex Composite Materials Co.,Ltd specialize in silicone fire blanket, we offer customize service. Please contact system@corefrp.com, we will provide free sample.

Application prospect of high temperature silicone fireproof cloth

High temperature silicone fireproof cloth, also known as silicon titanium fireproof cloth, smoke fireproof cloth, it’s composite multifunctional new product which is produced with special technology treatment of the surface of glass fiber cloth. It also has a wide range of applications.

Due to the stable chemical property, high temperature resistance and ablation resistance of silicone fireproof cloth, the product is widely used in aerospace, metallurgy, chemical industry, building materials, fire protection and other industrial fields. High temperature silicone fireproof cloth has compact structure, non-irritating, soft and tough texture features, meanwhile, it’s easy to cover on the uneven surface of the object and equipment, also can be used as the material of high-grade pipe and equipment insulation jacket. High temperature silicone cloth can well protect the object away from the heat and spark, and completely prevent the combustion or isolated combustion. High temperature welding fireproof cloth is suitable for welding sparks to withstand sparks, slag, welding spatter, etc., it will be used to isolate and block flammable and explosive dangerous goods and prevent fire in welding work.

High temperature silicone fireproof cloth is lightproof, while creating a safe, clean, standardized work space. High-temperature smoke vertical cloth is the ideal protective tool in large shopping malls, supermarkets, hotels and other public places, which is to isolate the workplace, separated working layer, blocking smoke to prevent the spread of fire.

If you are interested in silicone fireproof cloth, please contact system@corefrp.com, our engineers will serve and answer your questions.

The basic security measures of welding and gas cutting operations

Safety measures for welding work
Wear welder clothes, special welders gloves, insulated shoes in case of burning.
Wear protective glasses when knocking the welding slag.
Welding arc can cause great harm to the eyes, avoid looking at welding light, and give timely reminders to welders.

The length of the welding machine does not exceed 3 meters
Welding machine secondary line length is not more than 25 meters, which should be leaded to the welding parts, the grounding of the workpiece must be grounded, it’s forbidden to overlap.

Check the primary and secondary cable sheath with or without damage

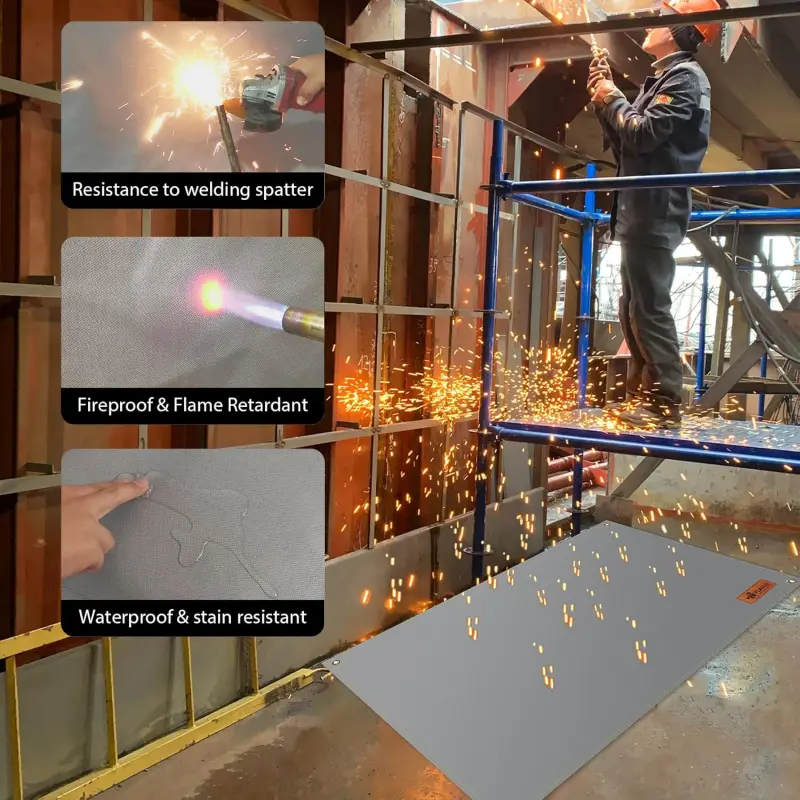

Silicone fire blankets or fireproof bedding are used for welding, that laid on the platform or under the equipment to prevent the spark falling, splashing.
Equipped with 2 bottles of 4 kg of qualified dry powder fire extinguisher.
Clean up the operating area of the area combustible.

After the work, make sure the fire has been extinguished, clean before leaving.

Work safety measures for gas cutting:
Wear welder clothes, special welders for gloves, and insulated shoes, which in case of burn.
Wear protective glasses when knocking the welding slag.
Oxygen, acetylene bottles with good shock ring, tied and placed vertically, the bottom of the bottle good rubber; two bottles is more than 8 meters away, more than 10 meters from the fire point.
Check that the oxygen, acetylene pressure gauge are normal, acetylene temper is normal, oxygen and acetylene without damage.
Gas cutting operations using fire blankets or suitable bedding, laying on the platform or under the equipment to prevent the spark falling, splashing.
Equipped with 2 bottles of 4 kg of qualified dry powder fire extinguisher before the fire.

Before the fire operation, clean up the operating area of the area combustible
After the work, make sure that fire has been extinguished, clean before leaving

The safety measures of welding, gas cutting
Wear welder clothes, special welders for gloves, and insulated shoes, which in case of burn.
Wear protective glasses when knocking the welding slag
Welding arc can cause great harm to the eyes, avoid looking at welding light, and give timely reminders to welders.
The length of the welding machine does not exceed 3 meters.
Welding machine secondary line length is not more than 25 meters, which should be leaded to the welding parts, the grounding of the workpiece must be grounded, it’s forbidden to overlap.
Oxygen, acetylene bottles with good shock ring, tied and placed vertically, the bottom of the bottle good rubber; two bottles is more than 8 meters away, more than 10 meters from the fire point.
Check that the oxygen, acetylene pressure gauge are normal, acetylene temper is normal, oxygen and acetylene without damage.
Silicone fire blankets or fireproof bedding are used for gas cutting, that laid on the platform or under the equipment to prevent the spark falling, splashing.
Equipped with 2 bottles of 4 kg of qualified dry powder fire extinguisher before the fire.
Before the fire operation, clean up the operating area of the area combustible
After the work, make sure the fire has been extinguished, clean before leaving.

Other situation
Separation measures for fire equipment and flammable and explosive materials (cables, oils, wood products, plastics, etc.)
Oil pipeline cleaning, hydrogen pipeline replacement, etc.

Stipulation of gases and dust concentrations.

If you are interested in our silicone fiberglass blanket, please feel free to contact us(system@corefrp.com), we have professional technical department and sales team to service you, meanwhile, we also provide customized services!

Application and recommendation of silicone rubber fiberglass blanket

Silicone rubber fiberglass blanket, which is made of glass fiber, and then coated the silicone rubber. Silicone rubber fiberglass blanket is high temperature, splash-proof, insulation blanket. Silicone rubber fiberglass blanket is of high usability and versatility, silicone rubber fiberglass blanket can be as a substrate to make split-type silicone rubber glass fiber sleeving, high temperature welding work or splash forging operations blanket, fire cloth, fire curtain and so on.

Protective blanket for welding operations
Welding sparks and splashing, welding spatter, etc., these splashes of sparks, welding spatter can easily lead to fire, using silicone rubber glass fiber blanket to isolate the splashing sparks, thus eliminating the welding operation may cause a fire hazard.

Protective blanket for splash forging operations
Silicone rubber fiberglass blanket made of splash forging blanket and welding operation blanket are with the same principle, which is for separation and isolation. However, the splash-forging operation requires more protection of the silicone rubber glass fiber blanket than the welding operation. Because it is not only splashing sparks, but also accompanied by high temperature spatter, so that threaten workers’ safety, and also threaten the hose and cable in splash zone, so it’s necessary to use the silicone rubber glass fiber blanket.

Split-type silicone rubber glass fiber sleeving
The process of Split-type silicone rubber glass fiber sleeving is quite different from silicone rubber glass fiber sleeving. The silicone glass fiber glass fiber sleeving, which weaves the glass fiber into sleeving, then coat or calender the silicone rubber on the outside of the sleeving. The split-type silicone rubber glass fiber sleeving is using silicone rubber fiberglass blanket stitched together by the edge, the edge of the refractory seam with high temperature velcro.

Recommendations of silicone fiberglass blanket:
1. In order to enhance the protective effect in the operation, it’s necessary to use multi-layer composite fire blanket.
2. The fire welding blanket with different coating treatment, which achieve different effects. Such as waterproof, wear-resistant, anti-corrosion, oil-proof, improve temperature resistance, increase the heat resistance time and so on. The user should be based on the specific requirements to choose appropriate blanket.
3. For covering objects and equipment, should choose soft, and flexible fire blanket. For covering large objects or equipment, should choose a large fire blanket.
4. For the thickness less than 0.6mm of the welding blanket should be used vertically to avoid the spark breakdown of electric welding blanket; The thickness of the welding operation blanket should be more than 0.6mm for horizontal using.
In general, silicone rubber fiberglass blanket has good availability, wide range of usage.

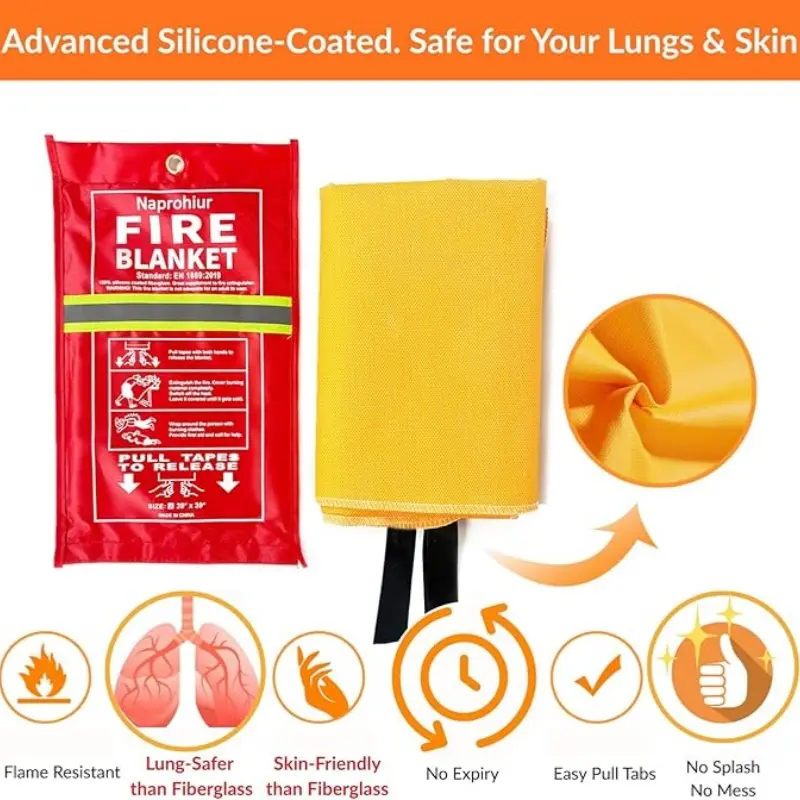

The usage methods and precautions of silicone fire blanket

The silicone coated fiberglass fabric, which has the unique high temperature resistance, aaging resistance, has a soft and flexible characteristics, and better than ordinary coated fabric, thus, it is widely used in the production of new fire blanket.

The usage methods of silicone fire blankets
1. Fix or place the silicone fire blanket on wall or drawer that is visible and fast to take.
2. In case of fire, take the silicone fire blanket out quickly, both hands holding the two black belts.
3. Open the silicone fire blanket, as a shield-like in hands.
4. Cover the flame gently with silicone fire blanket and disconnect the gas or electric.
5. The fire blanket cover the fire object continually, and and take active fire fighting measures until the fire completely extinguished.
6. When the fire is extinguished, and silicone fire blanket cooling, Wrap the blankets as a non-combustible waste.
7. If the person is on fire, open the silicone fire blanket, wrap the person to put the fire out completely, and call the emergency call quickly.

Fire escape: the silicone fire blanket wrapped in the body and wear a smoke mask, escape from the fire quickly. Fire blanket can be isolated from the flame, reducing the fire temperature.

Industrial safety: steel factory, arc welding, boiler room and chemical laboratory and other places which is easy to cause fire, the fire blanket can resist the sparks, furnaces, welding spatter, Isolate workplace, separate the working layer, stop the fire caused by welding work.

Early fire fighting: In the early fire, the silicone fire blanket covered fire or the burning object directly, can put the fire out quickly in a short time.

Earthquake escape: fold the silicone fire blanket on the head, using its thick, compact structure to reduce the impact of falling objects.

Precautions:
1. Place the silicone blanket firmly in a convenient place (eg behind an indoor door, bedside cabinet, kitchen wall, car trunk, etc.) and familiarize that how to use it.
2. Check the fire blanket every 12 months.
3. If there is damage to the silicone fire blanket, replace it immediately.

The market of silicone coated fiberglass fire blanket

In recent years, with the rapid economic development, there are more more high-rise buildings and large supermarkets, the risks of natural disasters are increasing. What’s more, with the rapid growth of urban construction, the high-performance fire-resistant emergency escape fire blanket, a 1 to 2 square meters of fire blanket, the volume is very small, it can be hung in the kitchen, living room and hallway, in case of fire, it can cover the fire immediately, and put the fire blanket draped over the head can become a refuge when escape from the fire, thus, the fire blanket with good market prospects.

There are many kinds of fire blanket, it can be widely used in the shipbuilding industry on the structure and repair of the ship; it can also be used in petrochemical enterprises of the metal structure, such as heat insulation, thermal insulation and welding, fire blanket is showing a very good protective adaptation. Fire blanket for hot work of large supermarkets, shopping malls, hotels and other public places of entertainment, such as welding, cutting and blocking, and to ensure the safety of life and property integrity. If it is compared with asbestos, there is no carcinogenic Risk. Because of the soft and toughness of the fire blanket, it is not only an ideal choice for the uneven objects and equipment, but also can replace the low temperature resistance fireproof fabric, what’s more, it is a very economical fire blocking layer and fire curtain. Fire blanket with different coating treatment, it can achieve different results, such as waterproof, wear-resistant, anti-corrosion, oil-proof, improve temperature resistance, and the time of temperature resistance and so on. The users should be based on the specific requirements of the use of appropriate fire blanket. If it is used in the cover objects and equipment, should choose soft and flexible fire blanket, such as fire cover cloth.

Silicone coated fiberglass fire blanket, which is sewing the silicone coated fiberglass fabric to fire blanket in different dimensions. Most of the fire blanket in the market is made of fiberglass fabric because of the high temperature resistance, the disadvantage is human body is itch sensitive to the glass fiber. For silicone coated fiberglass fire blanket, the fireproof silicone coating has covered the glass fiber effectively in case of the itch sensitive glass fiber to skin. Silicone coated fiberglass fire blanket, easy to carry, and safe for fire retardant.
